High Power 10 Antennas Desktop Cell Phone Jammer
High Power 10 Antennas Desktop Cell Phone Jammer
  • Style No. :
  • Brand : HankerTech
  • Hits:     UpdateTime:  2020-09-19 18:34:38   |   Printing     Close

Detailed

World First 10 antennas Signal jammer with Intelligent cooling system,blocking 2G,3G,4G, WIFI,GPS,Lojack,cover range up to 150m

This high power 10 antennas desktop cell phone jammer is the private latest design of HankerTechTechnology. As the world first high power desktop cellphone signal jammer each channel output power up to 25W,which can also block GSM,CDMA,DCS/PCS, 3G, 4G, Wi-Fi, GPS,5G WIFI.This cellphone jammer can meet your target of most general type of Cell phone frequencies.High power with large cover range,up to 150 meters.Good cooling system with 11 cooling fans inside.There have 4 Temperature control fans on the host,the fans not working immediately while the jammer started.The temperature control fans auto start running after the host surface temperature raise to 50℃ to ensure the jammer working steadily . It great for school classroom avoid exam cheat and oil/gas station keep in secure.The each band output power can be adjustable according to your request.

Jamming frequencies:

Output Port Frequency Average Out-putting Power Channel Out-putting Power
CDMA 850-894MHz 30W/44.8dBm 15dBm/30KHz(min)
GSM 925-960MHz 30W/44.8dBm 15dBm/30KHz(min)
DCS 1805-1880MHz 25W/44dBm 13dBm/30KHz(min)
PCS 1920-1990MHz 25W/44dBm 13dBm/30KHz(min)
3G 2110-2170MHz 25W/44dBm 8dBm/30KHz(min)
WIFI2.4G 2400-2500MHz 25W/44dBm 7dBm/30KHz(min)
GPS 1570-1580MHz 25W/44dBm 13dBm/30KHz(min)
4G LTE 790-826MHz or 725-770MHz 25W/44dBm 15dBm/30KHz(min)
4G WIMAX 2620-2690MHz or 2345-2400MHz 25W/44dBm 7dBm/30KHz(min)
Lojack 165-174MHz 25W/44dBm 7dBm/30KHz(min)

Power supply: AC adapter (AC110V220V-DC24V)

Shielding Radius:(60-150) meters@-75dBm,still depends on the signal strength in given area.

Antenna Parameter:Omni Directional Antenna,Gain:5dBi.
Dimension: (length, width, height) 520x310x90mm Net weight: 12kg
You can select 10 of above frequency bands as your needed, in default we will send by country different


































Advantages:

1,Large coverage, covering all 2G, 3G,4G,2.4GWIFI,GPS,Lojack signals.
2,High power cell phone signal jammer,up to 25W output power for each channel.
3,Good cooling system with 11 cooling fans inside.

4,There have 4 Temperature control fans on the host,the fans not working immediately while the jammer started.The temperature control fans auto start running after the host surface temperature raise to 50℃ to ensure the jammer working steadily.
5,Low noise.
6,Can adjust or turn off any single band without influencing the other bands operation.
7,Work non-stopped.
8,Stable capability.

9,This jammer can not use on vehicle directly,you can optional allocation 24V,35A battery, if you want to use jammer on the vehicle(Contact us for the details) .

10,Optional Frequencies:315MHz,433MHz,868MHz,1170-1280MHz,1370-

1390MHz,5100-5680MHz,5680-5900MHz,3400-3600MHz,3600-3800MHz.
11,Total output power: 260W
12,Full set weight: 15kg

13,Power supply: AC 110V/220V and 24V DC.
14,Dimension: 520mm x 310mm x 90mm.

Application area:
1.It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more;
2.For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.

Warranty: one year from delivery date.

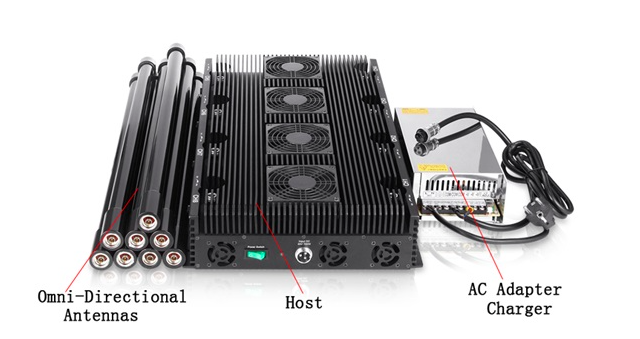

Accessories:
Multifunction jammer x 1
AC adapter x 1
Antenna x 10
